Application



The synchronising plug and socket is used as an interlock system which ensures safe operation during procedures such as switching, synchronising and voltage selection.  A six contact system with four coding pins is used.  The combination of male and female coding pins provides a series of 14 non-interchangeable socket sets.  The socket will accept plug type SPS100B which provides up to 3 links giving 22 different arrangements of connections for linking adjacent plug pins.  In addition, the socket will accept a cable entry plug type SPS106B which can accommodate up to six core + earth umbilical cable for purposes such as remote switching or connection to synchronising trolleys.



Sockets



Suitable for bulkhead mounting, each socket comprises a powder coated die-cast aluminium housing with a locking lever and a polycarbonate insulated moulding which accommodates six silver plated copper alloy contacts.  Each contact has a screw terminal at the rear which can accommodate 0.75 mm² - 2.5 mm² cable.  The contact assembly is mounted in the housing with four coding pins to provide alternative interlocking positions or can be supplied without coding pins.

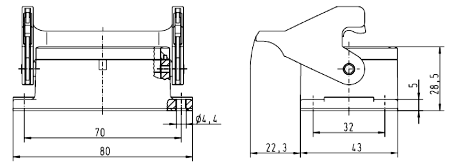

Bulkhead housing socket outline                                                       Panel cut-out

Plug type SPS100B



An assembly of a powder coated die-cast aluminium housing and a polycarbonate insulated moulding which accommodates six silver plated copper alloy contacts.  The contacts are connected together with up to 3 links giving 22 different arrangements of connections for linking adjacent plug pins or available with linking non-adjacent contacts to order.  The contact assembly is mounted in the housing with four coding pins to provide alternative interlocking positions or can be supplied without coding pins.



Cable entry plug type SPS106B



An assembly of a powder coated die-cast aluminium housing and a polycarbonate insulated moulding which accommodates six silver plated copper alloy contacts.  Each contact has a screw terminal at the rear which can accommodate 0.75 mm² - 2.5 mm² cable.  The housing utilises a cable gland suitable for 6 mm - 12 mm outside diameter.  The contact assembly is mounted in the housing with four coding pins to provide alternative interlocking positions or can be supplied without coding pins.

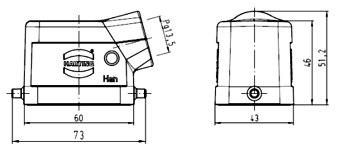

Plug housing outline
