Plug and socket labels



Arrangement of the labels on the plug and socket housings are shown below. Any text can be accommodated within the dimensions shown.

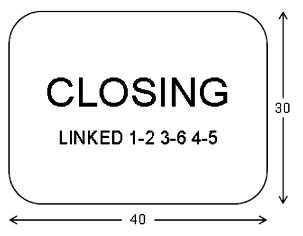

Label - Socket.

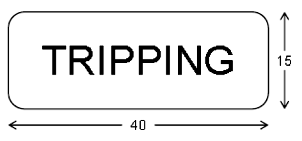

Label - Plug types SPS100B and SPS106B.



Information required with order



Plugs. For plug type SPS100B, provide model number / contact link code / coding pin code.
For plug types SPS106B, provide model number / coding pin code.

Sockets. Provide model number / coding pin code.

Labels. Provide details of any label text required.

Note. Plugs & sockets intended to mate together must have identical coding pin code.

Model Numbers.

Sockets



SYNCHSOCKETB Standard Socket No Label

SYNCHSOCKETBE Standard Socket With Label



Plugs



SPS100B1 Single Link No Label

SPS100B1E Single Link With Label

SPS100B2 Double Link No Label

SPS100B2E Double Link With Label

SPS100B3 Triple Link No Label

SPS100B3E Triple Link With Label

SPS106B Cable Entry No Label

SPS106BE Cable Entry With Label



Examples



SPS100B1 / A / 1 Interlock plug, no label, pins 1 - 2 linked, coding pin arrangement 1.

SPS100B3E / V / 15 Interlock plug, with label (define text), pins 1 - 4, 2 - 5 & 3 - 6 linked, no coding pins.

SPS106BE / 9 Cable entry plug, with label (define text), coding pin arrangement 9.

SYNCHSOCKETB / 9 Standard Socket, no label, coding pin arrangement 9.
