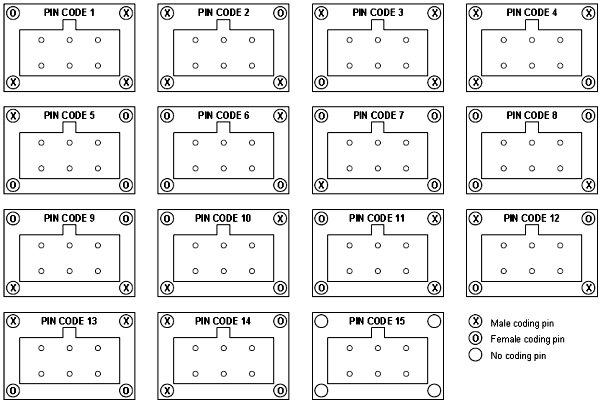

Socket - coding pin arrangement codes. (Plug - has opposite coding pin)




























SPS100B - adjacent contact link codes.



SINGLE LINK

DOUBLE LINK

TRIPLE LINK

LINKS

CODE

LINKS

CODE

LINKS

CODE



















1 - 2

A

1 - 2

3 - 6

H

1 - 2

3 - 6

4 - 5

T

1 - 4

B

1 - 2

4 - 5

I

1 - 4

2 - 3

5 - 6

U

2 - 3

C

1 - 2

5 - 6

J

1 - 4

2 - 5

3 - 6

V

2 - 5

D

1 - 4

2 - 3

K









3 - 6

E

1 - 4

2 - 5

L









4 - 5

F

1 - 4

3 - 6

M









5 - 6

G

1 - 4

5 - 6

N













2 - 3

4 - 5

O













2 - 3

5 - 6

P













2 - 5

1 - 4

Q













2 - 5

3 - 6

R













4 - 5

3 - 6

S
